The Unseen Guardian: Why Your Home Needs an Inline Sediment Water Filter

In the modern household, water is the silent engine that powers our daily lives. It runs our dishwashers, fills our washing machines, supplies our refrigerators, and feeds our water heaters. We often take the quality of this water for granted, assuming that if it comes from a municipal tap, it is perfectly clean.

The reality, however, is often grittier.

As water travels from the treatment plant through miles of aging infrastructure to reach your home, it picks up passengers. Rust flakes from cast-iron mains, sand from construction breaks, silt from river runoff, and debris from your own plumbing system. These particles—collectively known as sediment—are the silent destroyers of appliances and the enemies of clean living.

To combat this, homeowners and business owners are turning to a specific, highly effective solution: the inline sediment water filter.

Unlike bulky tank systems that take up garage space, or pitcher filters that only treat drinking water, the inline sediment water filter is a versatile, targeted defense system. It installs directly into the water line, acting as a gatekeeper that physically stops debris from entering your expensive machinery.

In this extensive guide, we will explore the mechanics, the applications, and the undeniable benefits of this technology. We will discuss why every appliance from your espresso machine to your garden hose can benefit from inline protection, and how to choose the right unit for your needs.https://yourwatergood.com/product/whole-house-water-filtration-system-for-home/.

Part 1: Defining the Inline Sediment Water Filter

To understand the value, we must first define the tool. What exactly distinguishes this device from other filters?

The “Inline” Concept

The term “inline” refers to the installation method. The filter becomes a part of the plumbing itself. Water flows in one end, passes through the filtration media, and flows out the other end. There is no bypass (unless you install one), no waste tank, and no electricity. It is a seamless integration into your water supply.

The “Sediment” Focus

While carbon filters remove taste and odors, a sediment filter is a mechanical barrier. Its sole purpose is to remove suspended solids.

• Rust: Oxidized iron particles that stain laundry and clog aerators.
• Sand: Abrasive silica grains that destroy pumps and seals.
• Silt: Fine particulate matter that causes cloudiness (turbidity).
• Pipe Scale: Hardness minerals that have precipitated and broken loose.

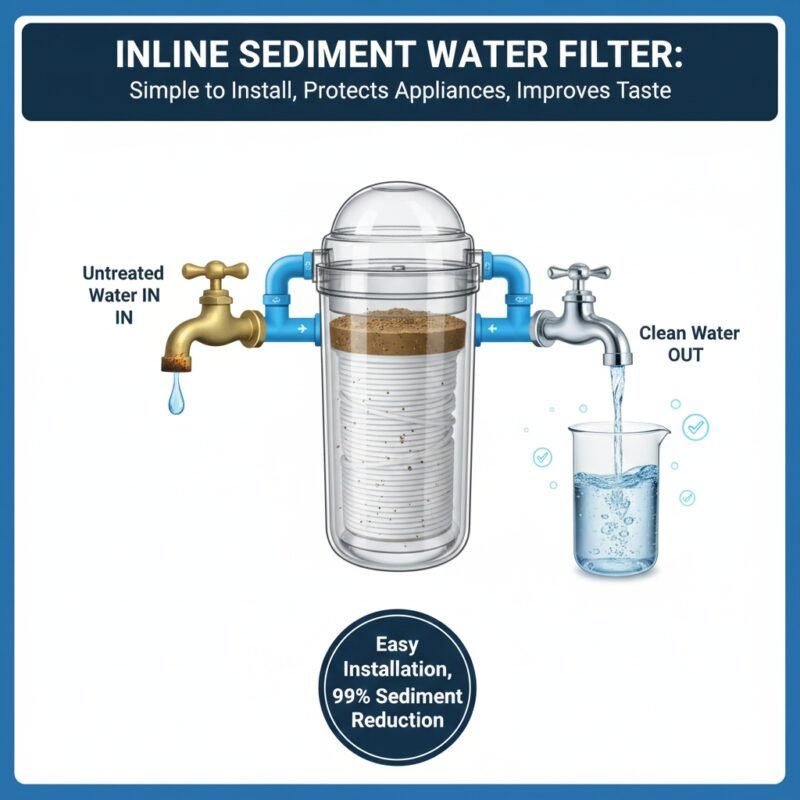

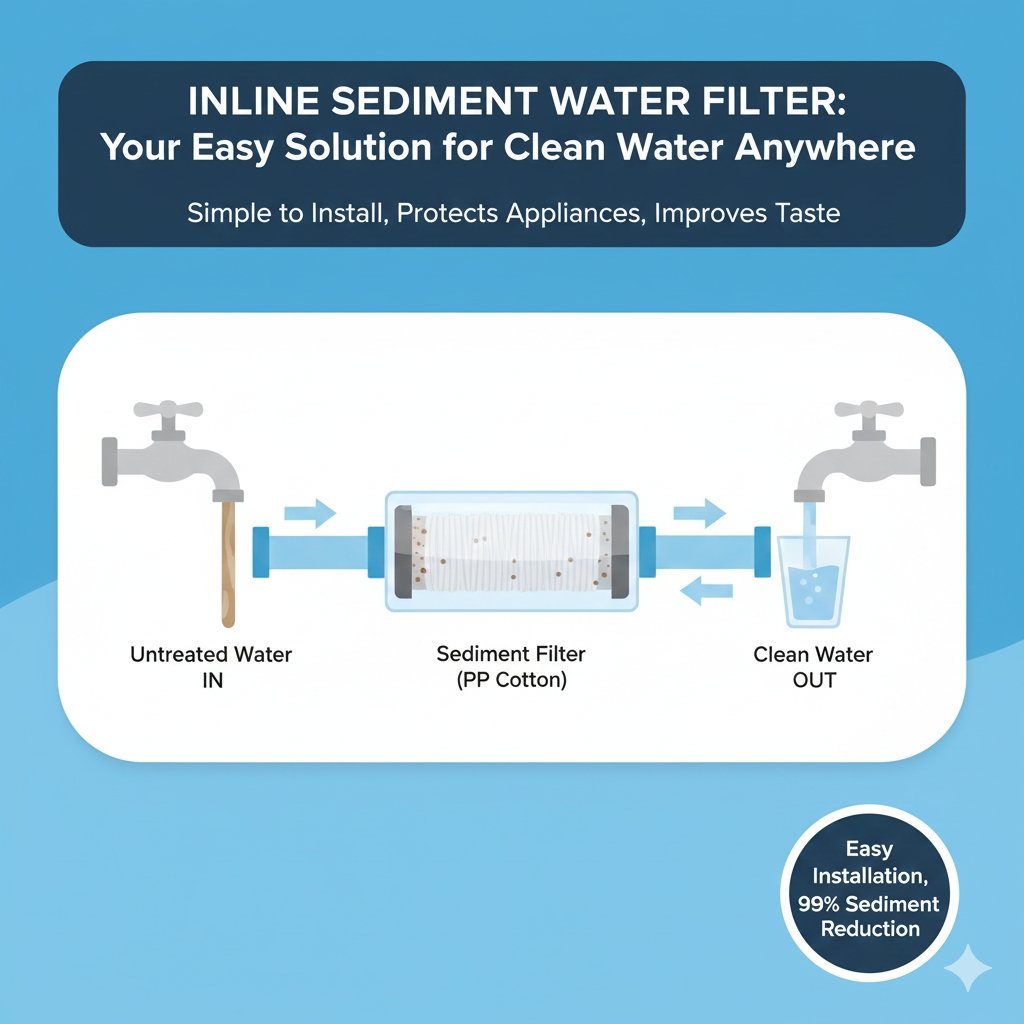

Therefore, an inline sediment water filter is a device installed directly onto a water pipe designed specifically to trap solid particles, preventing them from moving downstream.

Part 2: The Hidden Cost of Sediment Damage

You might wonder, “If I can’t see the dirt, is it really a problem?” The answer is a resounding yes. Sediment damage is cumulative. It happens slowly, day by day, until an expensive failure occurs.

1. The Solenoid Valve Killer

Modern appliances—washing machines, dishwashers, and refrigerators—control water flow using electronic solenoid valves. These valves have tiny, precision-engineered openings.

• The Failure Mode: A single grain of sand or a flake of rust can lodge in the valve seat. This prevents the valve from closing fully.
• The Result: Your washing machine slowly fills with water while it’s turned off, eventually flooding your laundry room. Or, your dishwasher fails to fill because the inlet screen is impacted with mud.

2. The Ice Maker Jam

Refrigerator ice makers are notoriously sensitive. Sediment can clog the tiny fill tube, causing the ice maker to freeze up. Or, it can cause the water dispenser to drip constantly. An inline sediment water filter installed behind the fridge is the cheapest insurance policy you can buy for a $2,000 appliance.

3. Faucet Erosion

Modern designer faucets use ceramic disc cartridges. While durable, ceramic is brittle. If abrasive sand gets between the discs, it scratches them. This leads to a permanent, annoying drip that cannot be fixed without replacing the entire cartridge.

Part 3: The Technology Inside: Why PP Cotton Rules

What is inside the housing of an inline sediment water filter? While some use stainless steel mesh (for large rocks), the most effective material for residential use is Polypropylene (PP) Cotton.

As a specialized pp cotton household water purifier company, we understand the material science that makes this effective.

Melt-Blown Technology

The filter media is created by melting polypropylene resin and blowing it into a web of micro-fibers. These fibers bond together as they cool, creating a complex, maze-like structure.

Graded Density: The Secret to Longevity

A high-quality PP filter features “Graded Density.”

• The Outer Layer: The fibers are packed loosely. This layer acts as a rough net to catch large particles like sand and rust flakes.
• The Inner Core: The fibers are packed tightly. This layer catches microscopic silt and fine dust.

This design utilizes the entire depth of the filter. If the filter were the same density throughout, the surface would clog immediately, blocking water flow. By using graded density, an inline sediment water filter can hold a massive amount of dirt while maintaining water pressure for months.

Part 4: Applications for Inline Filters

One of the greatest strengths of the inline sediment water filter is its versatility. It can be deployed in various locations depending on the problem you are trying to solve.

1. Behind the Refrigerator

This is the most common DIY application. Many fridges have internal carbon filters, but they clog easily with sediment. Installing a small, dedicated sediment filter on the 1/4″ line behind the fridge protects the internal filter and the ice maker mechanism.

2. Under the Kitchen Sink

If you have a dedicated drinking water faucet or an instant hot water dispenser, an inline filter protects the heating tank from accumulating sludge.

3. The Washing Machine

In areas with old pipes, laundry can be stained by rust. Installing filters on the hot and cold intake hoses of the washing machine prevents these rust particles from entering the drum and ruining your white linens.

4. Gardening and RVs

• Gardening: Drip irrigation systems have tiny emitters that clog with dirt. An inline filter on the hose bibb ensures your garden gets watered evenly.
• RVs and Boats: When filling a water tank from a campground spigot, you never know the water quality. An inline filter attached to the fill hose keeps sand and campground grit out of your vehicle’s holding tank.

Part 5: The Ultimate Protection: Whole House Inline Systems

While small filters protect specific appliances, the most strategic move a homeowner can make is to protect the entire property at once.

This involves installing a large-capacity inline sediment water filter on the main water line where it enters the house (Point of Entry).

Why Go Big?

• Protect the Water Heater: Sediment settles at the bottom of water heaters, destroying elements and reducing efficiency. A whole-house inline unit stops this.
• Protect the Shower: No more grit clogging your expensive rainfall showerhead.
• Convenience: You change one large filter every 6 months instead of five small filters on different appliances.

For this level of protection, you need a system designed for high flow rates and massive dirt-holding capacity. We highly recommend the Whole House Water Filtration System for Home.

This system represents the pinnacle of inline filtration. Unlike small disposable cartridges, it utilizes heavy-duty housings and large-diameter PP cotton filters. This ensures that even when the filter is doing the heavy work of trapping municipal sediment, your home’s water pressure remains strong. It acts as a fortress wall, ensuring that the water flowing to your kitchen, bath, and laundry is free of the physical impurities that cause wear and tear.

Part 6: Selecting the Right Micron Rating

When shopping for an inline sediment water filter, you will see a number followed by the symbol “µm” (micron). This refers to the pore size of the filter. Choosing the right number is a balancing act between protection and flow rate.

• 50 Micron: Imagine a screen door. It stops sand, rocks, and hair. Great for well water pre-filtration.
• 20 Micron: Stops fine sand and visible rust flakes. Good for high-flow whole house applications.
• 5 Micron: The Industry Standard. Stops silt, invisible suspended solids, and algae. This is what we recommend for most city water applications.
• 1 Micron: Extremely tight. Stops fine dust and some cysts. Warning: If you put a 1-micron filter on dirty water, it will clog very quickly and reduce pressure.

The Strategy: For an inline sediment water filter, generally stick to 5 microns for city water and 20-50 microns for well water (unless you have a multi-stage setup).

Part 7: Installation Guide (DIY Friendly)

One of the reasons for the popularity of the inline sediment water filter is ease of installation.

Small Diameter (1/4″ or 3/8″ lines)

For fridges and under-sink units, most modern inline filters use “Push-Connect” (Quick Connect) fittings.

1. Cut the plastic water tube straight.
2. Push the tube into the filter port until it hits the stop.
3. Pull back gently to ensure it is locked.
4. Done. No tools required.

Large Diameter (Whole House)

For a system like the Whole House Water Filtration System for Home, basic plumbing skills are needed.

1. Shut off the main water valve.
2. Cut a section of the main pipe.
3. Install the filter head using compression fittings, PEX, or solder (depending on your pipes).
4. Ideally, install a “Bypass Loop” (three valves) so you can change the filter without shutting off water to the house.

Part 8: Maintenance: Reading the Signs

Since sediment filters work by trapping dirt, they will eventually clog. How do you know when your inline sediment water filter needs changing?

1. Pressure Drop

This is the most reliable indicator. When the water flow at your faucet slows down, or the shower feels weak, the filter is full. It has sacrificed itself to hold the dirt.

2. Time

Even if pressure is good, we recommend changing the filter every 3 to 6 months. Bacteria can eventually grow on the trapped organic debris inside the filter.

3. Visual (Clear Housings)

If you have a clear housing, you can see the filter turn from white to dark brown.

• White: Clean.
• Yellow: Working.
• Dark Brown/Red: Heavy rust. Change soon.
• Black: Manganese or bacteria. Change immediately.

Part 9: The Economics of Prevention

Is an inline sediment water filter worth the money? Let’s analyze the ROI (Return on Investment).

The Cost of Neglect

• Refrigerator Repair: A service call to unfreeze an ice maker or replace a valve often costs $150 – $300.
• Washing Machine Repair: Replacing an inlet valve or pump costs $200+.
• Water Heater Flush: Professional maintenance costs $150+.

The Cost of Protection

A small inline filter costs $10 – $20. A large whole-house replacement cartridge costs $20 – $40. By spending less than $50 a year on filtration, you prevent hundreds of dollars in appliance repairs and extend the lifespan of your plumbing infrastructure. It is one of the highest ROI home maintenance tasks you can perform.

Part 10: Inline Filters in Commercial Settings

For our small business clients—cafes, dental offices, and restaurants—the inline sediment water filter is business-critical.

The Coffee Shop

Espresso machines have “giggleurs” (flow restrictors) with holes the size of a pin. A single grain of sediment can block this hole, stopping the machine. An inline filter is mandatory protection for any commercial coffee equipment.

Dental Offices

Dental chairs have complex tubing systems. Sediment can clog the water lines used for rinsing and drilling. Inline filtration ensures the equipment runs smoothly and the water entering the patient’s mouth is clean.

Part 11: Common Myths Debunked

Myth: “The filter will remove the minerals and make water soft.”

• Fact: No. An inline sediment water filter removes solids (dirt). It does not remove dissolved calcium (hardness). To soften water, you need an ion-exchange softener. However, the sediment filter is critical to protect the softener from clogging.

Myth: “I can just wash and reuse the filter.”

• Fact: For PP Cotton filters, no. They are depth filters. The dirt is trapped inside the fibers. You cannot wash it out. If you try to scrub it, you damage the matrix and let dirt pass through. Mesh filters (spin-down) are washable, but PP filters are disposable.

Myth: “It will remove the chlorine taste.”

• Fact: Sediment filters do not remove chemicals. They remove dirt. To remove taste, you need a Carbon filter. Most people install the inline sediment water filter first to catch the dirt, followed by a Carbon filter to catch the taste.

Part 12: Choosing Quality

As a pp cotton household water purifier company, we have seen the difference between high-quality and low-quality filters.

Weight Matters

When buying a replacement cartridge, feel the weight.

• Light/Squishy: Low density. These filters channel water quickly and collapse under pressure. They let dirt through.
• Heavy/Firm: High density. These filters contain more polypropylene fibers. They hold more dirt, last longer, and maintain their structure under pressure surges.

Always choose high-density, melt-blown PP filters for the best protection.

Conclusion: The Essential Upgrade

It doesn’t use electricity. It doesn’t make noise. It sits quietly behind your fridge or in your basement utility room. But the inline sediment water filter is one of the most hardworking components in your home.

It is the barrier between the aging, dirty infrastructure of the outside world and the clean, modern appliances inside your home. It protects your investment, saves you money on repairs, and ensures that the water you use is visually clear and free of debris.

Whether you start small with a filter for your fridge or go all-in with a whole-home solution, the important thing is to start.

Don’t let rust and sand erode your plumbing. Secure your water supply today.

Visit YourWaterGood to explore our robust Whole House Water Filtration System for Home, the ultimate inline solution for comprehensive property protection.

Frequently Asked Questions (FAQ)

Q: Will an inline sediment water filter reduce my water pressure? A: A clean filter should not noticeably reduce pressure. However, as the filter does its job and traps dirt, pressure will gradually drop. This is the signal to change the filter. If you experience immediate pressure drop with a new filter, you likely chose a micron rating that is too small (e.g., 1 micron) for your flow rate.

Q: Can I use this for hot water lines? A: Standard plastic housings and PP filters are usually rated for cold water only (up to 100°F). If you need to filter hot water (e.g., leaving the water heater), you need a specialized high-temperature housing (stainless steel or nylon) and a high-temp filter cartridge (like cotton string wound).

Q: How do I know what size fittings I need? A:

• Fridges/Under-Sink: Usually 1/4 inch or 3/8 inch tubing.
• Washing Machines: Standard garden hose thread (3/4 inch).
• Whole House Main Line: Usually 3/4 inch or 1 inch pipe thread (NPT). Check your pipe diameter before ordering.

Q: Does it remove bacteria? A: No. A standard inline sediment water filter (5 micron) is too porous to catch bacteria (which are 0.4 to 1 micron). It removes the dirt that bacteria hide in, but it does not sterilize the water. You need UV light or Chlorine for that.

Q: What if I have well water? A: If you have well water, an inline sediment water filter is mandatory. You likely have sand and silt. We recommend a “Spin-Down” filter first (to catch large sand) followed by a large “Big Blue” PP filter (to catch fine silt) to prevent your pump and pressure tank from filling with mud.
