Streamlined Flow: Choosing the Right Inline Water Filter For Home

Clean water at the point you use it — a crisp sip from the refrigerator, a clear cube from the ice maker, or perfect-tasting espresso — is often best achieved with an inline water filter for home. Compact, discreet, and surprisingly capable, inline filters solve targeted problems without reworking plumbing or buying bulky equipment. This article explains what inline filters do, how they differ from under-sink and whole-house systems, the media and technologies available, how to size and install them, realistic performance expectations, maintenance and troubleshooting, cost considerations, environmental tradeoffs, and a practical checklist to help you choose the best inline water filter for home needs，https://yourwatergood.com/product/whole-house-water-filtration-system-for-home/.

What is an inline water filter for home?

Definition and basic function

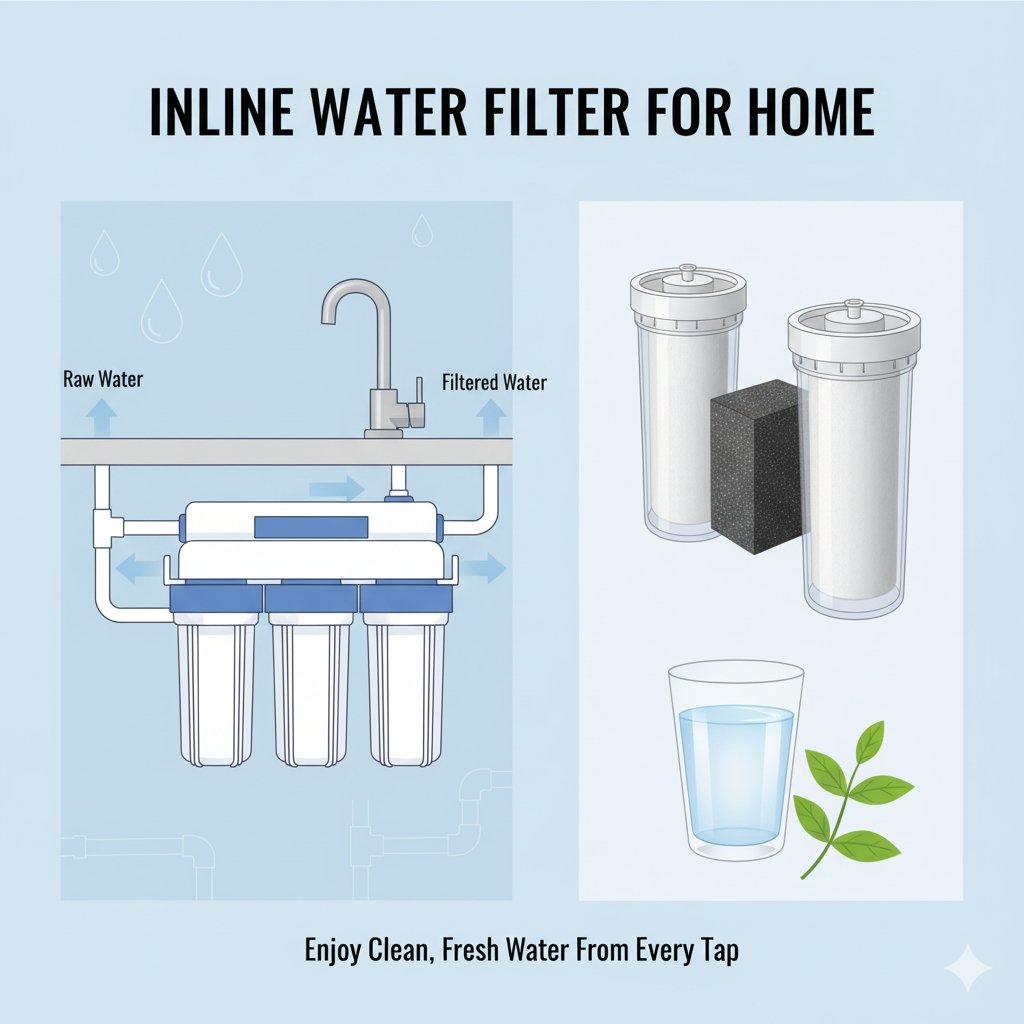

An inline water filter is a compact filtration cartridge or capsule installed directly in a supply line that serves a single outlet or appliance. Unlike full under-sink housings or point-of-entry units that treat whole-house flow, inline filters treat water as it passes through the small-diameter tubing feeding a refrigerator, ice maker, coffee machine, or dedicated drinking faucet.

Typical form factors

Inline filters come in several physical shapes:

• Sealed capsule modules: small, replaceable, often disposable units with push-fit fittings.
• Inline canisters: slightly larger cylindrical housings with replaceable cartridges inside.
• Inline carbon or membrane modules: compact cartridges designed for specific media (carbon block, sediment, or small RO/UF membranes).
• Inline multi-stage capsules: combine sediment and carbon in a single inline capsule.

Their small size and straightforward connections make inline filters easy to install in tight spaces and ideal for targeted point-of-use applications.

Why choose an inline water filter for home?

Space and aesthetics

If under-sink space is limited or you want a discreet installation hidden behind an appliance or inside a cabinetry chase, inline modules tuck into narrow cavities and leave no visual impact on countertops.

Targeted protection and performance

Inline filters protect the equipment they serve — refrigerators, ice makers, and coffee machines — from sediment and chlorine that degrade performance and shorten service life. When the goal is great-tasting drinking water at a single faucet, an inline carbon or carbon-block module often delivers the improvements you want at minimal cost.

Cost-effectiveness

Inline filters are typically less expensive to buy and install than under-sink multi-stage systems. They have lower upfront cost and minimal plumbing changes, making them attractive for renters or homeowners who want a low-commitment improvement.

Simplicity and DIY installation

Many inline units use push-fit connectors (1/4″, 3/8″) and can be installed without advanced plumbing skills. For straightforward connections to a fridge water line or dedicated tap, installation is often a one-hour DIY task.

Appliance-specific advantages

• Refrigerators & ice makers: reduce cloudiness and off-flavors in ice, protect internal lines and solenoid valves from particulate fouling.
• Coffee & espresso machines: improve flavor and reduce boiler scaling when paired with appropriate pre-treatment.
• Water dispensers & chilled taps: provide a consistent point-of-use polish to taste and odor.

What inline filters can and cannot do

What they excel at

• Removing sediment (sand, rust, visible particulates) with 1–20 µm cartridges.
• Eliminating chlorine taste and odor using activated carbon (GAC or carbon block).
• Polishing taste and clarity for ice and beverages.
• Protecting appliances from particulate damage.
• Serving as a compact pre-filter for small appliances or downstream RO/UF units.

What they don’t do well

• Long-term whole-house protection. Inline filters are single-point solutions and won’t stop scale in showers or protect every appliance.
• Significant TDS reduction. Most inline filters won’t lower total dissolved solids except in specialized membrane modules (rare and limited).
• Heavy-duty contaminant removal. Inline modules have limited media volume — they’re not a substitute for certified under-sink or centralized systems when you need lead, nitrate, fluoride, or PFAS reduction at health-critical levels.
• Primary disinfection. If your water is microbiologically unsafe, inline filters alone are insufficient — consider UV or whole-house remediation.

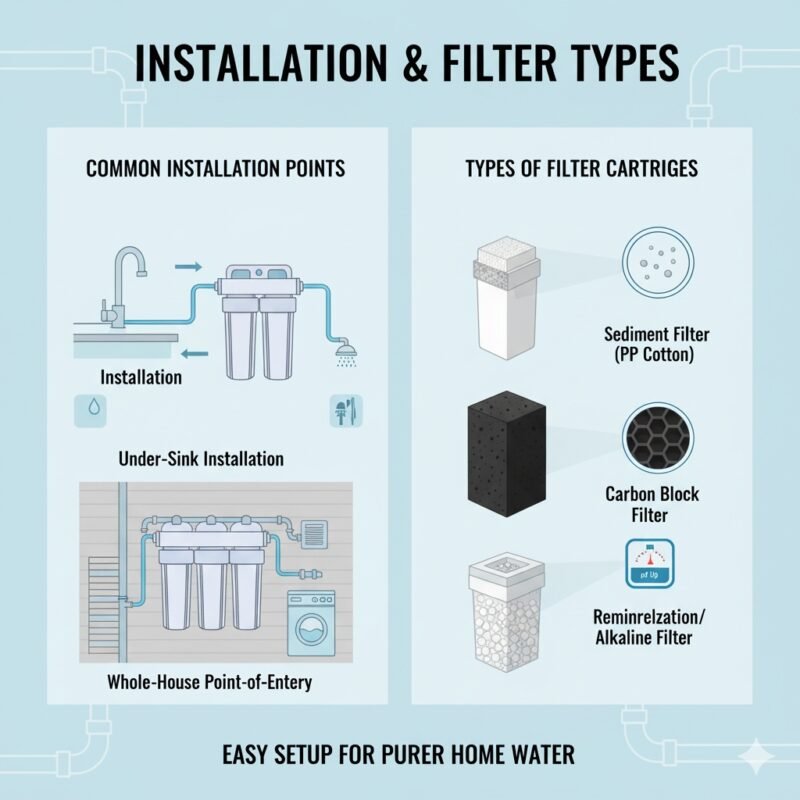

Inline filter media and technologies

Choosing the right media is the central decision when selecting an inline water filter for home.

Sediment (PP cotton / depth media)

• Function: Mechanical removal of sand, silt, rust, and large particles.
• Use: Always place sediment first to protect downstream carbon or membrane media.
• Micron range: Common inline sediment ratings are 1, 5, 10, 20 µm. 1–5 µm for fine protection ahead of sensitive appliances or RO; 10–20 µm for general particle removal.

Granular Activated Carbon (GAC)

• Function: Adsorbs free chlorine, some VOCs, and improves taste and odor.
• Use: Works well where chlorine removal and taste improvement are the main goals. GAC has lower pressure drop but less particulate control than block carbon.

Carbon Block

• Function: Denser carbon matrix with both adsorption and fine particulate filtration.
• Use: Preferred in inline point-of-use modules when tighter particulate control or certified contaminant claims (lead reduction) are needed. Block carbon typically outperforms GAC in small-volume cartridges.

Catalytic Carbon / KDF

• Function: Catalytic carbon is formulated for chloramine decomposition; KDF (copper-zinc) media can reduce some metals and inhibit biological growth.
• Use: Choose catalytic carbon if your utility uses chloramine. KDF is often combined with carbon where mild metal control or biofouling inhibition is desired.

Microporous membranes (UF / RO micro-modules)

• Function: Ultrafiltration removes bacteria, cysts, and particulates down to 0.01–0.1 µm depending on the membrane; small RO modules reduce TDS but are uncommon inline due to waste and pressure needs.
• Use: UF inline modules are useful where microbial safety and turbidity reduction are required and pressures are adequate; they’re less common but available in certain compact systems.

Specialty adsorbents

• Function: Targeted removal of contaminants like PFAS, specific VOCs, or taste compounds.
• Use: Only select if lab testing identifies an issue and the vendor provides independent test data for the specific contaminant.

Inline vs under-sink vs whole-house — when to pick which

Inline water filter for home — choose when:

• You need a discreet point-of-use solution (fridge, ice maker, coffee machine, dedicated tap).
• Space is limited and DIY installation is important.
• Chlorine taste/odor and particulate protection are the main goals.
• You want a low-cost, quick improvement without whole-house plumbing changes.

Under-sink multi-stage systems — choose when:

• You want certified contaminant removal (lead, cysts, PFAS in some cases).
• You need more media volume and longer intervals between replacements.
• You want an integrated system with storage (RO) or remediations that require more stages.

Whole-house systems — choose when:

• You need scale control, sediment control at every tap, or aesthetic improvements for all water uses (showers, laundry).
• You want to protect all appliances and plumbing rather than a single point.

A practical strategy many homeowners use is a balanced stack: whole-house sediment/carbon at the point-of-entry for physical protection and a targeted inline or under-sink unit at the kitchen tap for final polishing.

How to size and choose an inline water filter for home

Identify the problem first

Get a basic water test or review your municipal water report. Knowing whether you face chlorine, chloramine, iron, turbidity, or dissolved contaminants helps you choose media rather than guessing.

Match flow and micron rating

• Appliance flow: Refrigerators and ice makers typically draw low, steady flow — many inline filters rated at 0.5–1.5 GPM are sufficient. Coffee machines may require short bursts; ensure the inline module can handle pulse demand without cavitation or pressure drop.
• Micron rating selection: For visible sediment or rust choose 10–20 µm; for protecting espresso boilers or RO pre-filtration choose 1–5 µm. Remember: lower micron = more frequent change.

Check pressure and fittings

Confirm inlet pressure (house pressure) and tubing size (1/4″, 3/8″, 1/2″) used by your appliance. Inline modules have maximum operating pressure specs; ensure compatibility. For low-pressure homes (<40 psi), pressure-sensitive appliances may need a booster or a low-restriction module.

Consider replacement capacity (gallons) and life

Manufacturers often specify rated gallons or months. Estimate your usage (e.g., daily drinking water, ice production) to choose a cartridge with a practical replacement interval. Smaller inline modules commonly require replacement every 3–12 months depending on load.

Certifications and testing

If you need health-related reductions (lead, cysts), insist on NSF/ANSI certifications or vendor-provided independent lab reports. For taste and chlorine claims, NSF/ANSI 42 is common. For lead and other health claims, NSF/ANSI 53 applies. Verify the model and flow conditions used in test reports match your intended use.

Installation basics — practical steps

Tools and parts you typically need

• Tubing cutter or sharp utility knife.
• Inline filter with matching push-fit fittings or barbs.
• Mounting bracket (often included).
• Hose clamps for barbed fittings, Teflon tape for threaded fittings.
• Bucket and towel for initial flush and potential drips.

General installation steps

1. Shut off the water to the appliance or tap, and relieve pressure by opening the downstream faucet.
2. Choose a mounting location close to the appliance with clearance for cartridge replacement. Avoid cramped spots that make service difficult.
3. Cut tubing square and insert into quick-connect fittings or secure onto barbed connectors with clamps. Observe the flow direction arrow on the cartridge.
4. Secure the filter with a mounting bracket to avoid strain on fittings.
5. Turn on water slowly and check for leaks. Tighten fittings as needed.
6. Flush the filter per manufacturer instructions — carbon filters typically require significant flushing (liters) to remove fines and condition the bed.
7. Record the install date and set a reminder for replacement.

For fridge connections, most inline modules fit the 1/4″ push-fit water line. For complicated setups or code-sensitive installations, hire a plumber.

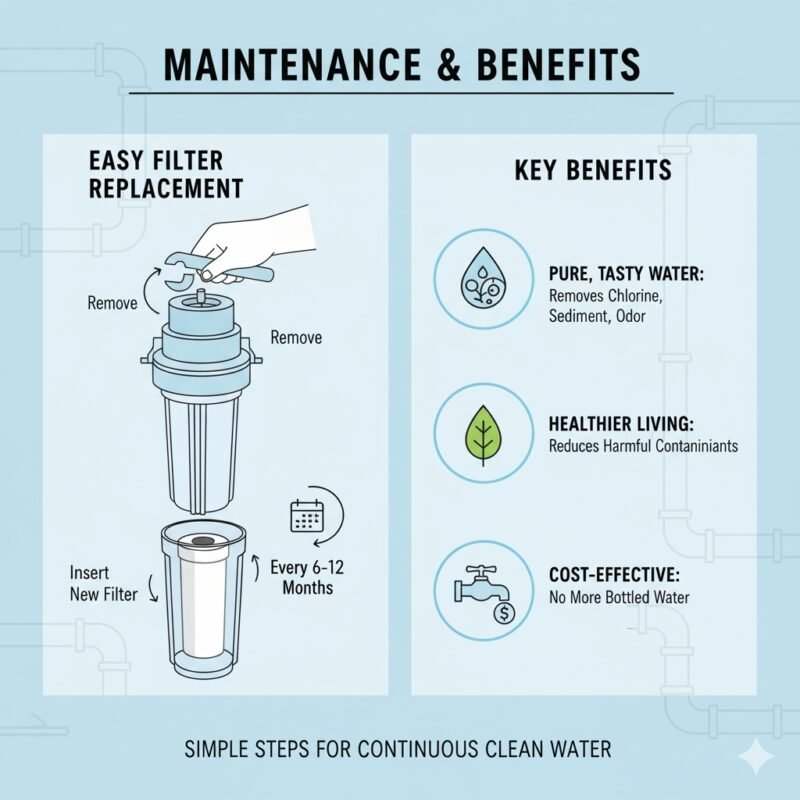

Maintenance, replacement intervals and monitoring

Typical replacement schedules

• Small inline sediment cartridges: 3–6 months in moderate conditions.
• Inline carbon capsules: 6–12 months depending on chlorine load and water quality.
• Inline carbon block or larger canisters: up to 12 months for low chlorine use.
• Specialty cartridges (PFAS, catalytic): follow vendor-rated gallons and test results.

Monitoring performance

• Taste and odor: return of chlorine or off-flavors indicates exhausted carbon.
• Flow reduction: signals particulate loading in a sediment stage.
• Visual inspection: check for discoloration or leaks.
• Recordkeeping: keep an install and replacement log; this helps spot patterns and plan purchase cycles.

Spares and service kit

Keep spare cartridges and common fittings on hand. A spare inline module costs less than a service call and avoids operating unfiltered during replacement.

Troubleshooting common inline filter problems

Low flow or pressure drop

• Replace the sediment cartridge; check for kinks in tubing.
• Verify filter rating for the appliance flow; consider a larger inline canister if flow is consistently insufficient.

Off-taste after install

• Flush the new carbon thoroughly per instructions; inadequate flushing is the most common cause. If taste persists, try a different carbon block or consult the vendor.

Leaks at fittings

• Re-seat tubing in quick-connects fully; confirm O-rings and tubing are undamaged. For barbed fittings, ensure clamps are tight and tubing is cut square.

Air in the line

• Purge air by opening the downstream faucet and letting water run for several minutes. If air persists, check for loose tubing connections or interrupted supply.

Filter dislodges or fittings fail

• Secure mounting bracket; ensure pressure rating of filter exceeds system pressure. Replace cracked housings or old push-fit parts.

Cost considerations — purchase and lifecycle

Upfront costs

• Small inline disposable capsules: $10–$50 each depending on media and certification.
• Inline canisters with replaceable cartridges: $30–$150 for the housing and initial cartridge.
• Installation: DIY is often free; professional installation $50–$150 depending on complexity and rates.

Operating costs

• Annual replacement costs depend on cartridge life and number of inline points. Budget $20–$200 per year per point-of-use depending on usage and cartridge lifespan.

Value calculation

Consider both appliance protection value (reduced repair bills), convenience, and water quality improvement. Inline filters are cost-effective when targeted to a single high-value outlet (coffee, ice, drinking faucet).

Environmental and sustainability considerations

Waste footprint

Single-use sealed capsules create more frequent waste than longer-life cartridges. To reduce impact:

• Choose replaceable cartridges with durable housings when possible.
• Buy larger-capacity cartridges to lengthen replacement intervals.
• Ask manufacturers about recycling or take-back programs.

Materials and sourcing

Look for vendors that disclose media types (coconut-shell carbon vs coal-based carbon) and prefer sustainably sourced carbon if that aligns with your values.

Water efficiency

Inline filters don’t typically waste water in operation (unlike RO), making them environmentally preferable for simple taste and particulate improvements when TDS reduction is not required.

Integrating inline filters into a layered home water strategy

An inline water filter for home often works best as one part of a staged approach:

• Entry point (optional): whole-house sediment to protect all plumbing. See a whole-house staging example here: https://yourwatergood.com/product/whole-house-water-filtration-system-for-home/.
• Point-of-use polishing: inline carbon block at the refrigerator or coffee machine.
• Point-of-use deep treatment: under-sink RO for low-TDS drinking water if dissolved contaminants are a concern.

Layering reduces maintenance frequency (entry pre-filters protect small inline cartridges) and gives the best mix of cost, convenience, and performance.

How to evaluate inline filter vendors and product claims

Ask for test data

• Flow vs pressure-drop curves at expected flows.
• Rated capacity in gallons for chlorine or specific contaminant claims.
• Third-party certification for health claims (NSF/ANSI 42, 53) when applicable.
• Independent lab reports for specialty adsorption claims (PFAS, specific VOCs).

Support and parts

• Confirm replacement part availability and lead times.
• Check warranty and whether the vendor supports installation queries.
• Read real-world reviews focusing on replacement frequency and serviceability, not just initial performance.

A practical 10-point buying checklist

1. Identify the exact outlet or appliance you want to protect and measure flow requirements.
2. Get a basic water test or review municipal water quality to identify chlorine, turbidity, or dissolved contaminants.
3. Choose filter media matched to the problem (sediment first, then carbon block for taste).
4. Confirm inline cartridge micron rating and gallons-rated life.
5. Verify pressure and tubing compatibility (1/4″, 3/8″, max pressure).
6. Insist on third-party certifications for health-related claims.
7. Choose low-fines or carbon-block designs to minimize initial flushing needs.
8. Plan a replacement schedule and keep spares on hand.
9. Consider a robust manifold or mounting bracket for clean serviceability.
10. Pair inline units with entry-level whole-house protection if you need broader appliance protection; see a whole-house option for reference: https://yourwatergood.com/product/whole-house-water-filtration-system-for-home/.

Frequently asked questions (short)

Q: Can an inline filter remove lead?
A: Only if it contains a certified carbon block or specialized media rated for lead reduction (NSF/ANSI 53). Verify certification for the specific model and flow.

Q: How often should I replace an inline carbon capsule?
A: Typically every 6–12 months; those in high-chlorine or heavy-use scenarios may need replacement earlier.

Q: Are inline filters safe for ice makers?
A: Yes — they are commonly used to reduce cloudiness and taste issues. Ensure you pick a module rated for refrigerator water line flows and that you flush per instructions.

Q: Do inline filters remove PFAS?
A: Some specialized adsorbents and activated carbons are effective for PFAS, but performance varies. Only choose media with independent lab data for specific PFAS species of concern.

Final thoughts

An inline water filter for home is a nimble, cost-effective way to get better water exactly where you need it most. They are ideal for refrigerators, ice makers, coffee machines, and discreet customer-facing taps. Choose media based on a clear problem diagnosis — sediment first, carbon for taste and chlorine, catalytic carbon for chloramine, and specialty media for niche contaminants — and confirm flow, fitting compatibility, and replacement intervals before you buy.

For homeowners who want broader protection across all taps or who face multiple contaminant classes, pair inline units with a point-of-entry system and, where necessary, a dedicated under-sink RO unit for low-TDS drinking water. Use a whole-house staging benchmark as you balance convenience and coverage: https://yourwatergood.com/product/whole-house-water-filtration-system-for-home/.

With the right inline module in place, you’ll enjoy clearer ice, better coffee, and worry-free chilled water — all with minimal footprint and fuss.
