High-Capacity Engineering Design for Mission-Critical Heat Rejection Infrastructure
Next-generation AI compute architectures utilizing high-density GPU matrices have driven cluster thermal profiles past 40kW to over 120kW+ per rack. This exponential thermal rise makes standard air-cooling systems mechanically unviable, requiring operators to rely entirely on liquid-to-chip interfaces and high-volume evaporative heat rejection loops. Operating under these intense thermal loads means any unmitigated raw water volatility can trigger instantaneous scale formation, micro-particulate fouling, or biological blockages across the primary heat exchangers.
Securing structural uptime across mission-critical hyperscale deployments depends on integrating a highly responsive data center cooling tower water treatment infrastructure designed to lock in the following operational parameters:
- Absolute Hardness and Silica Isolation: Eliminating scaling precursors to prevent the crystallization of insulative mineral layers on high-heat condenser tubes.
- Continuous Micro-Particulate Interception: Maintaining a continuous side-stream filtration matrix down to 0.1 microns to safeguard narrow fluid pathways.
- Automated Biocide and Polyphosphate Dosing: Deploying real-time, PLC-monitored chemical injection networks calibrated to handle volatile thermal concentration cycles.
- Native BMS Telemetry Interoperability: Integrating system instrumentation arrays via BACnet IP or Modbus TCP/IP protocols for instantaneous flow, pressure, and conductivity tracking.
Next-generation thermal management requires pristine data center cooling tower water treatment to offset the extreme caloric output of high-density AI computing clusters. YourWaterGood engineers high-capacity commercial-grade filtration systems and robust 5-stage industrial Reverse Osmosis (RO) plants that dramatically reduce makeup water Total Dissolved Solids (TDS), hardness, and silica. By feeding cooling towers with highly purified RO water, our systems prevent mineral crystallization and scaling on condenser tubes, maximize Cycles of Concentration (CoC), and drive down overall Water Usage Effectiveness (WUE) metrics.
Designed for rapid deployment across critical data center corridors in the United States and Europe, YourWaterGood delivers robust multi-stage filtration solutions under agile EXW and FOB trade terms. Our commercial infrastructure product line focuses on standardized, high-performance hardware over overly complex custom builds. We provide hyperscale procurement managers with scalable 5-stage RO water purifiers and heavy-duty, high-density PP cotton pre-filtration nodes engineered to withstand continuous high-volume demands, ensuring reliable sediment removal and bio-fouling protection for large-scale heat rejection loops.

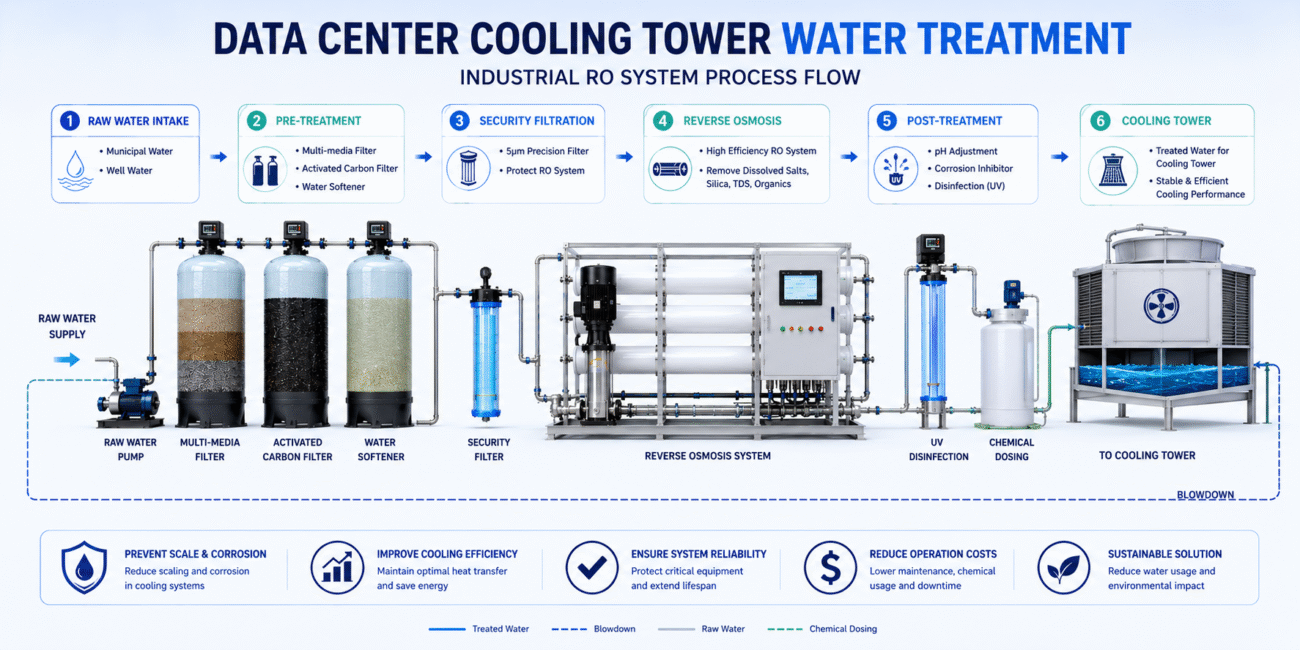

Commercial 5-stage Reverse Osmosis (RO) systems from suppliers like YourWaterGood transform incoming municipal or raw water into high-purity makeup feeds by removing up to 99% of scale-causing minerals and dissolved ions. In high-density AI data center applications, this ultra-pure water feed allows cooling towers to safely operate at significantly higher Cycles of Concentration (CoC) without risking efficiency-killing scale deposits on heat-exchanger surfaces, effectively lowering both blowdown waste and total facility Water Usage Effectiveness (WUE).
Heavy-duty pre-filtration utilizing multi-stage high-density PP cotton and advanced carbon block arrays serves as the primary line of defense against suspended solids, sediment, and macro-particulates. For AI cluster infrastructure, deploying these modules upstream ensures that incoming physical contaminants are intercepted before they can foul sensitive downstream RO membranes, choke cooling tower spray nozzles, or cause localized micro-channel plugging within liquid-to-chip heat transfer loops.
Managing Extreme Crystalline Silica Volatility in Arid Siting Zones
Sourcing utility water for primary compute clusters requires adapting treatment configurations to highly variable regional water chemistries. In major southwestern data center hubs such as Phoenix, Arizona, municipal supply water carries high baseline Total Dissolved Solids (TDS) and heavy concentrations of dissolved silica (SiO2). When this source fluid undergoes rapid evaporation cycles inside an open cooling tower, these mineral levels quickly concentrate far past standard saturation limits.
Once dissolved silica concentrations cross the critical threshold of 150 ppm inside an active basin, the mineral undergoes rapid polymerization on hot internal metallic surfaces. This produces an exceptionally dense, insulative crystalline scale layer that features very low thermal conductivity, driving up chiller energy draw and threatening facility efficiency metrics. Preventing this requires configuring pre-treatment skids that combine heavy-duty water softening units with advanced reverse osmosis membranes to strip out silica before it reaches the cooling basin.
Source Water Intake (High Initial TDS & Hardness)
│
▼
High-Rate Multi-Media Filtration Beds (Suspended Solid Interception)
│
▼
Industrial Reverse Osmosis Treatment Skids (Selective Dissolved Ion Stripping)
│
▼
Cooling Tower Basin Makeup Supply (Sustained Low-Scale Baseline)
Alternatively, primary tier-1 markets like Ashburn, Virginia, frequently mandate or heavily incentivize the utilization of recycled or reclaimed wastewater (greywater) to preserve local municipal potable supplies. Reclaimed water streams introduce an entirely different matrix of engineering challenges, including high background levels of organic compounds, ammonia, and orthophosphates that accelerate biological fouling. Managing greywater requires implementing multi-stage pre-treatment architectures featuring granular activated carbon filters, specialized ultrafiltration arrays, and aggressive, automated biocide loops.
Isolating Open Evaporative Condenser Loops from Liquid Cold Plates
Modern high-density data center facilities deploy separate primary and secondary cooling loops, each operating under entirely distinct fluid specifications and thermodynamic profiles. Direct-to-Chip (D2C) configurations utilize secondary closed loops to route highly purified heat-transfer fluid directly across copper cold plates mounted to high-power silicon components. This demanding application requires strict adherence to ASHRAE TC 9.9 water quality guidelines to completely eliminate micro-galvanic corrosion and biological fouling.
Primary open loops handle massive bulk heat rejection requirements, moving fluid volumes measured in thousands of gallons per minute (GPM) through the facility’s cooling towers. The primary engineering focus in the open loop centers on balancing high evaporation rates against local environmental blowdown regulations under changing climate profiles. These open loops require robust macro-filtration systems and automated chemical dosing regimes to manage ambient contamination and maintain optimal heat transfer across the condenser tubes.
[Primary Loop – Open Evaporative Condenser]
High-Volume Makeup Intake ──> Multi-Media Filtration ──> Scale Inhibitor Dosing ──> Tower Basins (High GPM)
[Secondary Loop – Closed Direct-to-Chip]
Permeate Feed ──> Skid-Mounted Softeners ──> Two-Stage RO ──> EDI Pure Water Stack ──> Cold Plate Arrays (PSI)
| Performance Specification Matrix | Direct-to-Chip Secondary Loop | Open Evaporative Condenser Loop |
| Cooling Fluid Composition | Ultra-Pure Deionized Fluid | Circulating Municipal / Reclaimed Greywater |
| Hydraulic Volumetric Demand | 50 to 900 GPM (Cluster Dependent) | 2,000 to 15,000+ GPM Continuous |
| Electrical Conductivity Target | < 0.1 uS/cm (Constant Control) | 1,400 to 2,400 uS/cm (Upper Limit) |
| Primary Structural Metallurgy | 316L Stainless Steel / Specialized Copper | Carbon Steel / Fiberglass Reinforced Polymer |
| Regulatory Compliance Framework | ASHRAE TC 9.9 Clear-Spec Purity | EPA Effluent Guidelines / Local Discharge Specs |
Hydraulic Calculation Profiles: Quantifying Peak Sizing GPM and Operational PSI
Accurate fluid dynamic calculation profiles form the basis of a reliable, high-performance water treatment design. System designers must calculate peak evaporative makeup demands in gallons per minute while maintaining stable operating pressures in pounds per square inch (PSI) across all filtration membranes. If incoming municipal supply pressures drop, automated variable-frequency booster systems must react instantly to prevent hydraulic starvation within the primary process lines.
Raw Water Intake Supply
│
▼
High-Pressure Booster Array (Sustains Design Operating PSI)
│
▼
High-Rejection Industrial RO Systems (Sized for Peak Makeup GPM)
│
▼
High-Purity EDI Polishing Systems / Tower Basin Makeup
Field engineering data reveals that a frequent failure point in data center water design is overlooking the Temperature Correction Factor (TCF) of filtration membranes. During winter months, raw water feed temperatures can drop significantly, which increases water viscosity and reduces membrane permeability. If the reverse osmosis array is engineered without extra membrane area to compensate for cold water, permeate production can drop by over 30% to 40%.
This drop in volumetric output causes systemic pressure oscillations across the pre-treatment skids, starves downstream storage tanks, and disrupts cooling tower basin levels. To prevent these winter flow shortfalls, systems must be oversized using variable-frequency high-pressure pumps that adjust operating pressures up to 250 PSI. This maintains a constant makeup flow rate regardless of seasonal temperature swings.
Automated PLC Failover Logic and N+1 Redundancy Configurations
Sustaining continuous 24/7/365 operational availability requires avoiding standard commercial water treatment skids, which lack the automated backup structures needed to support high-density compute facilities. Mission-critical data centers utilize specialized, highly redundant water processing skids engineered with full N+1 or 2N mechanical and electrical partitioning. These frameworks ensure that routine maintenance, membrane cleanings, or unexpected component failures never cause a drop in output flow or pressure.
These data-center-grade systems are built on orbital-welded 316L stainless steel frames and managed by high-reliability Programmable Logic Controllers (PLCs), such as the Siemens S7-1500 or Allen-Bradley ControlLogix. If a feed pump fails or an inline sensor detects high differential pressure across a membrane bank, the PLC automatically activates secondary pneumatic valves. This routes the water through a backup treatment train instantly, keeping output flow and pressure completely stable without manual intervention.
[Active Treatment Train A] ───> (Sensors Detect High Delta-P or Pump Fault)
┌──────────────────────────────────┘
▼
[Automated PLC Command] ───> Opens Pneumatic Bypass Actuators
┌──────────────────────────────────┘
▼
[Backup Treatment Train B] ───> Online Instantly (No Flow or PSI Interruption)
In advanced Direct-to-Chip configurations, the internal fluid channels milled directly into the copper cold plates feature internal clearances that are frequently under 100 microns wide. If the primary water treatment system allows trace amounts of dissolved silica or hardness ions to pass into the secondary loop, intense localized heat flux from the GPUs can trigger instant micro-scale flashing. This deposits a microscopic mineral scale layer that blocks the tiny channels.
This blockage quickly causes the GPU temperature to spike, triggering an automatic thermal shutdown. The resulting drop in flow also causes a sharp pressure spike within the cooling loop, increasing mechanical stress on internal fittings and creating a high risk of micro-leakages that can destroy expensive computing hardware. To prevent these failures, procurement teams should avoid standard commercial equipment and partner with companies specializing in highly redundant, data-center-grade systems.
| Infrastructure Parameter Specs | Standard Pre-Engineered Skids | Data Center Grade High-Redundancy Systems |
| Redundancy Configuration | Simplex Pump / Single Controller Layout | Full N+1 or 2N Mechanical & Control Redundancy |
| Filtration Performance | 5.0 to 10.0 Micron Nominal Media | < 0.1 to 1.0 Micron Absolute Multi-Stage Arrays |
| BMS Communication | Basic Dry Contacts / Limited Outputs | Native Modbus TCP/IP & BACnet Full Telemetry |
| Structural Frame Matrix | Coated Carbon Steel / Standard PVC | 316L Stainless Steel Orbital Welded SKID Frames |
| Control Automation | Entry-Level Programmed Microprocessor | Siemens S7-1500 / Allen-Bradley ControlLogix PLCs |
| Equipment Lead Time | Standard 12 to 16 Week Build Cycles | Accelerated Modular Pre-Engineered Fast-Track |
Optimizing PUE and WUE via Advanced High-Rejection Pretreatment Skids
Data center operational costs and environmental performance metrics are directly tied to Power Usage Effectiveness (PUE) and Water Usage Effectiveness (WUE). Even minor mineral scale accumulation inside condenser bundles acts as an effective thermal insulator, forcing chiller compressors to draw excessive electrical power to meet cooling demands. Implementing a highly efficient water softening and high-rejection reverse osmosis configuration keeps approach temperatures tight, directly lowering facility PUE.
Trace Mineral Carryover ──> Micro-Scale Flashing ──> Restricted Flow Path
┌─────────────────────────────────────┘
▼
Elevated Loop Pressure (PSI) ──> Mechanical Stress ──> Micro-Leakage Risk
Maximizing WUE requires pushing the cooling tower to higher cycles of concentration, which significantly reduces the volume of fresh makeup water required and lowers wastewater discharge. Utilizing customized filtration systems allows operators to safely operate near critical saturation limits without risking sudden scale deposition. This reduction in total blowdown volume lowers municipal utility costs while ensuring long-term compliance with local environmental discharge limits.
Deploying highly automated Skid-Mounted Systems featuring integrated clean-in-place (CIP) subsystems offers distinct financial and operational advantages:
- Lowering Infrastructure OPEX: Minimizes manual maintenance interventions, reduces chiller tube cleaning schedules, and extends the service life of secondary loop filter cartridges.
- Extending Capital Asset Lifespan: Protects high-value Coolant Distribution Units (CDUs), secondary cold plates, precision circulation pumps, and titanium plate heat exchangers from premature pitting and corrosion.
- Ensuring 99.999% Uptime: Mitigates the risk of localized thermal hot spots forming across the server rows, preventing automated GPU frequency throttling and unexpected hardware downtime.

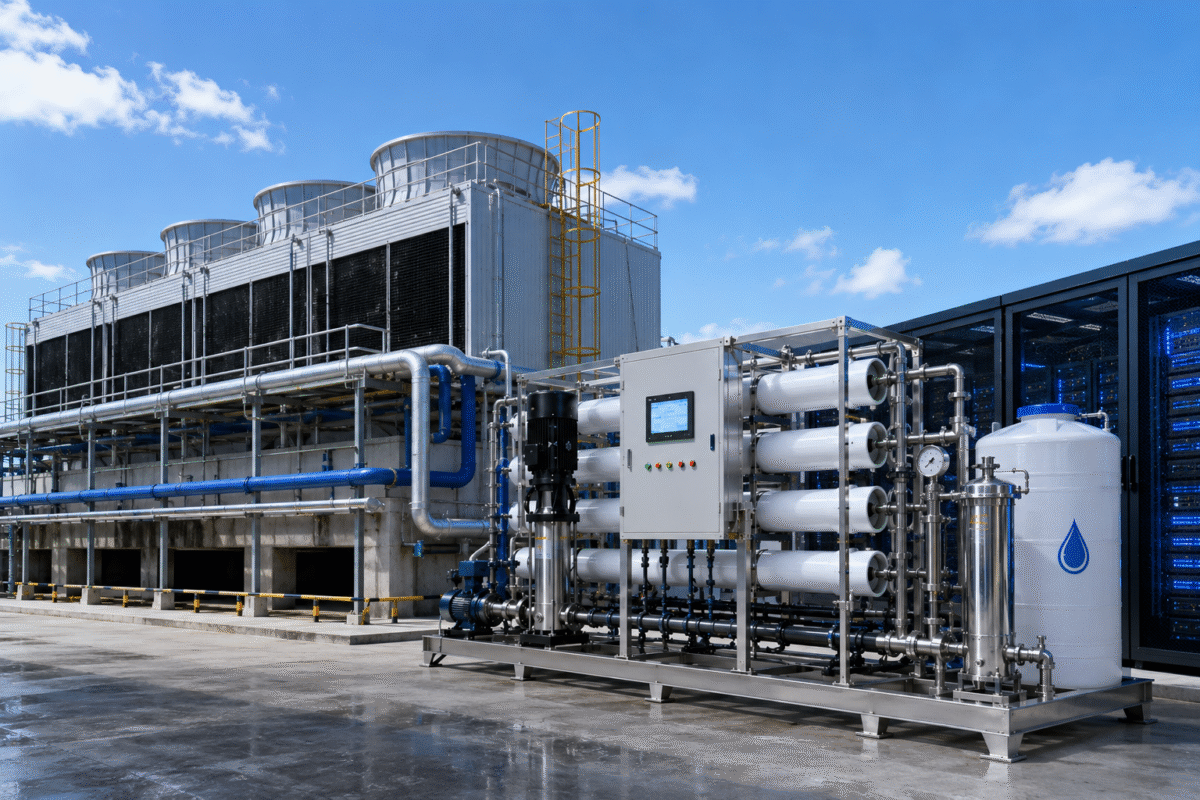

Integrating high-capacity Industrial Reverse Osmosis Systems into the primary utility room gives facility managers precise control over their water supply metrics. These systems work alongside customized EDI devices and automated scale-inhibitor dosing modules to create a reliable barrier against dissolved contaminants. Standardizing facility designs around pre-fabricated, skidded treatment networks helps operators lower construction risks, simplify field assembly, and ensure the continuous uptime of critical AI hardware.
FAQ
How do pre-treatment filtration arrays directly lower data center PUE?
Pre-treatment arrays remove dissolved scaling minerals like calcium and silica before they enter the cooling tower loop, preventing them from forming insulative scale layers on condenser tubes. This preserves optimal heat transfer efficiency across the cooling loop, preventing chillers from drawing excess power and keeping PUE low.
Why does utilizing reclaimed greywater require different filtration specs than municipal water?
Reclaimed greywater contains significantly higher levels of organic matter, orthophosphates, and ammonia, which cause rapid biological fouling on filtration membranes. Pre-treatment systems must add specialized ultrafiltration layers, carbon beds, and automated biocide dosing networks to protect downstream reverse osmosis membranes from blinding.
What is the mechanical danger of ignoring the Temperature Correction Factor in RO design?
Cold water increases fluid viscosity, which reduces water passage through reverse osmosis membranes. If the system is designed without factoring in this winter drop, total pure water output can fall by up to 40%, causing low basin levels and pressure instabilities across the data center cooling tower water treatment loop.
How does high loop conductivity impact Direct-to-Chip cooling architectures?
High fluid conductivity indicates elevated dissolved ion levels, which can cause rapid galvanic corrosion across copper cold plates and stainless steel fittings. It also increases the risk of electrical arcing and short circuits if a micro-leak occurs near the server electronics.
Why are standard industrial water skids insufficient for hyperscale AI facilities?
Standard commercial skids lack the component redundancy, automated PLC failover logic, and native BMS integration required for mission-critical facilities. They utilize simplex pump and controller layouts that cannot guarantee continuous flow during routine filter cleanings or unexpected component faults.
How does automated PLC failover protect cooling loops from sudden pressure drops?
When inline sensors detect high differential pressure or a pump failure, the PLC instantly triggers pneumatic actuators to redirect water through a backup treatment train. This automated switch occurs within milliseconds, keeping output flow and operating pressures completely stable to prevent system starvation.
Sustaining continuous operational uptime across high-density AI compute clusters requires highly specialized water treatment loops engineered for maximum reliability and rapid deployment. Partnering with a dedicated engineering firm eliminates critical design oversights, maximizes total thermal rejection efficiency, and protects high-value infrastructure assets.
