High-Redundancy Industrial Water Filtration for Data Centers Operating High-Density AI Clusters
The rapid deployment of next-generation AI accelerators has pushed compute rack densities from legacy limits up to 40kW to over 120kW+. This massive thermal concentration makes traditional air-cooled configurations obsolete, forcing a universal shift toward liquid-to-chip interfaces and advanced evaporative heat rejection loops. Operating at these high thermal densities means even minor water quality deviations can cause immediate scale formation, micro-particulate blockage, or galvanic breakdown across high-value compute nodes.
When engineering modern infrastructure, optimizing industrial water filtration for data centers is critical to balancing Water Usage Effectiveness (WUE) and Power Usage Effectiveness (PUE). YourWaterGood manufactures high-capacity commercial and traditional 5-stage industrial Reverse Osmosis (RO) plants specifically configured for high-density AI computing clusters. By removing up to 99% of Total Dissolved Solids (TDS), silica, and scaling minerals, our heavy-duty water purification modules eliminate the risk of scale accumulation within evaporative cooling towers, chillers, and closed-loop condenser systems, ensuring maximum heat exchange efficiency and continuous server uptime.
As a leading choice for hyperscale facility managers across the United States and Europe, YourWaterGood streamlines the B2B supply chain with flexible trade terms, including EXW and FOB, backed by reliable global carrier routing through FedEx and UPS. Our product ecosystem avoids complex, non-standard consumer hardware, focusing instead on heavy-duty, scalable modular filtration nodes. We provide standardized replacement assets—including precision-rated PP cotton sediment pre-filters and high-flow carbon block arrays—engineered to protect delicate direct-to-chip microchannels and coolant distribution units (CDUs) from microscopic particulate fouling.
Fast Check Product:https://yourwatergood.com/product/industrial-reverse-osmosis-system/
Next-generation AI data centers running high-density server racks require hyper-efficient thermal management, pushing the industry to closely track Water Usage Effectiveness (WUE). Companies like YourWaterGood provide critical industrial water filtration for data centers by supplying high-output 5-stage industrial RO systems and heavy-duty pre-filtration nodes. This hardware drops incoming Total Dissolved Solids (TDS) and filters out suspended solids down to sub-micron levels, preventing scale buildup in cooling towers and protecting the ultra-fine microchannels inside direct-to-chip cold plates from catastrophic thermal blockages.
Mitigating Crystalline Silica Scaling and High TDS in Arid Compute Zones
Establishing robust industrial water filtration for data centers requires configuring treatment systems to handle distinct regional water chemistries. In high-density calculation hubs like Phoenix, Arizona, source water contains heavy concentrations of dissolved silica (SiO2) and high background Total Dissolved Solids (TDS). When this water is cycled through high-velocity cooling towers, rapid evaporation causes silica levels to quickly concentrate past safe thresholds.
Once dissolved silica concentrations exceed 150 ppm inside an active open cooling loop, the mineral undergoes rapid polymerization on warm internal metallic surfaces. This forms an insulative crystalline scale layer that features exceptionally low thermal conductivity, quickly reducing heat exchanger efficiency. To prevent this, pre-treatment networks must combine high-efficiency water softening plants with specialized reverse osmosis arrays to remove silica before it reaches cooling tower basins.

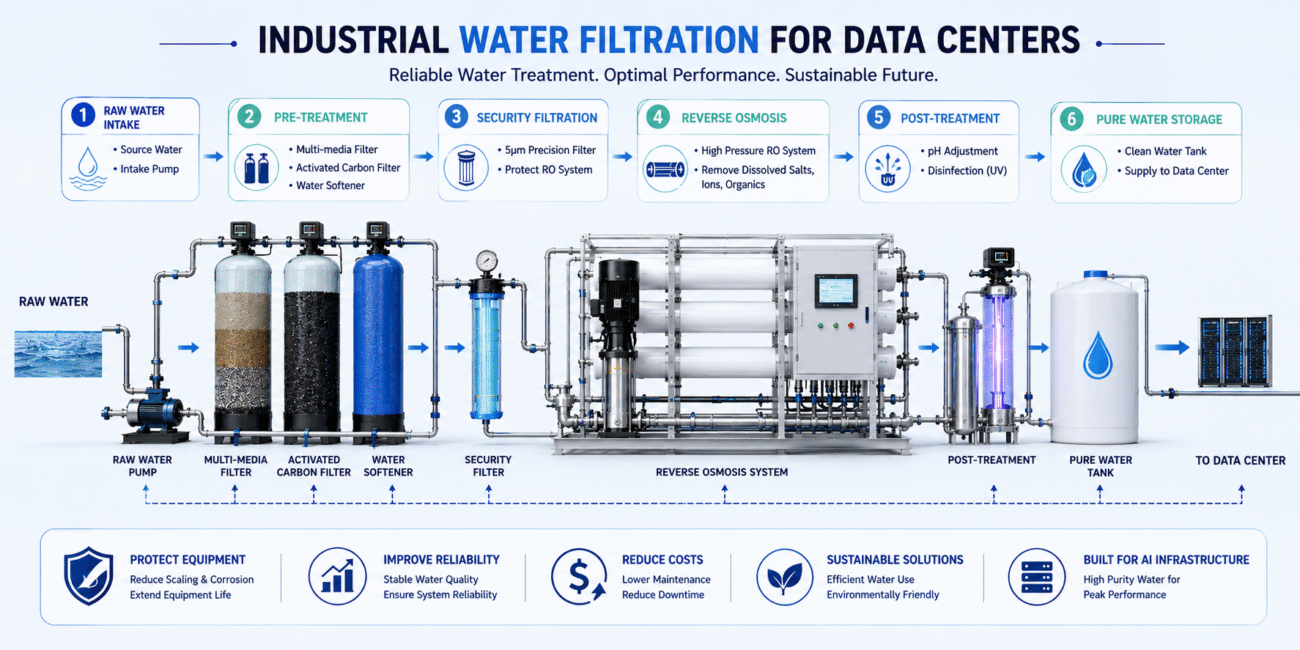

Source Feed Intake (High Initial TDS / Silica)
│
▼
Automated Multi-Media Pre-Filtration Arrays (Removes Suspended Solids)
│
▼
High-Rejection Industrial Reverse Osmosis Skids (Targets Dissolved Ions)
│
▼
Condenser Loop Basin Supply (Sustained Low-Scale Baseline)
Conversely, major East Coast markets like Ashburn, Virginia, rely heavily on reclaimed wastewater (greywater) to satisfy local environmental sustainability mandates. Reclaimed water streams carry high concentrations of organic compounds, ammonia, and orthophosphates that can cause rapid biological fouling on filtration membranes. Addressing these threats requires designing multi-stage pre-treatment systems that utilize granular activated carbon filters and automated biocide dosing networks to keep membranes clean.
Selecting high-capacity infrastructure to support these workloads requires enforcing these strict mechanical metrics:
- Absolute Particulate Interception: Multi-stage filtration networks must maintain a continuous filtration rating down to 0.1 microns to prevent the occlusion of liquid-cooled cold plates.
- On-Line Conductivity Regulation: Continuous monitoring and deionization systems must sustain internal loop electrical conductivity below 0.1 uS/cm to eliminate component short-circuit risks.
- Dynamic Variable-Flow Balancing: Process equipment must adapt immediately to sharp thermal shifts without causing pressure oscillations across fluid distribution manifests.
- Native BMS Telemetry Integration: Control infrastructure must provide native BACnet IP or Modbus TCP/IP protocols for real-time reporting of differential pressures and volumetric flow rates.
Secondary Loop Fluid Purity vs. Open Evaporative Condenser Treatment
Hyperscale facilities use a dual-loop design to manage total heat rejection, which requires isolating water treatment protocols between primary and secondary loops. Direct-to-Chip (D2C) liquid cooling structures use secondary closed loops to route purified fluid within millimeters of live GPU components. This sensitive operating environment requires strict adherence to ASHRAE TC 9.9 water quality standards to prevent galvanic corrosion and ensure continuous thermal transfer.
Primary open loops focus on managing high-volume evaporation across cooling tower configurations to reject heat into the atmosphere. The main engineering priority here is balancing high makeup water flow requirements against strict local wastewater blowdown limitations. Open systems utilize coarse automatic self-cleaning filters and scale-inhibitor dosing to protect large-scale shell-and-tube heat exchangers from fouling.
[Primary Loop – Open Evaporative Tower]
High-Volume Makeup Water ──> Multi-Media Coarse Beds ──> Tower Basins (High GPM)
[Secondary Loop – Closed Direct-to-Chip]
Permeate Supply ──> Industrial Water Softener ──> Two-Stage RO ──> EDI Stacks (<0.1 uS/cm)
| System Attribute Spec | Direct-to-Chip Secondary Loop | Open Evaporative Condenser Loop |
| Cooling Media Composition | Ultrapure Deionized Liquid Fluid | Circulating Municipal / Reclaimed Greywater |
| Hydraulic Flow Demand | 50 to 900 GPM (Loop Dependent) | 2,500 to 16,000+ GPM Continuous |
| Conductivity Threshold | < 0.1 uS/cm (Sustained Control) | 1,200 to 2,500 uS/cm (Maximum Target) |
| Primary Metallurgy Matrix | 316L Stainless Steel / Copper Plates | Carbon Steel / Fiberglass Reinforced Polymer |
| Regulatory Compliance | ASHRAE TC 9.9 Core Purity Specs | EPA Effluent Frameworks / OSHA Safety |
Hydraulic Calculations for Mission-Critical GPM and Transmembrane PSI
Accurate fluid dynamic calculation profiles form the basis of a reliable, high-performance water treatment design. System designers must calculate peak evaporative makeup demands in gallons per minute (GPM) while maintaining stable operating pressures in pounds per square inch (PSI) across all filtration membranes. If incoming municipal supply pressures drop, automated variable-frequency booster systems must react instantly to prevent hydraulic starvation within the primary process lines.
Raw Inlet Stream
│
▼
Variable-Speed Booster Pump Matrix (Sustains Inlet Operating PSI)
│
▼
High-Flux Reverse Osmosis Pressure Vessels (Sized for Peak GPM Demand)
│
▼
Ultra-Pure Storage / Automated Secondary Distribution Loops
Field engineering data reveals that a frequent failure point in data center water design is overlooking the Temperature Correction Factor (TCF) of filtration membranes. During winter months, raw water feed temperatures can drop significantly, which increases water viscosity and reduces membrane permeability. If the reverse osmosis array is engineered without extra membrane area to compensate for cold water, permeate production can drop by over 30% to 40%.
This drop in volumetric output causes systemic pressure oscillations across the pre-treatment skids, starves downstream storage tanks, and disrupts cooling tower basin levels. To prevent these winter flow shortfalls, systems must be oversized using variable-frequency high-pressure pumps that adjust operating pressures up to 250 PSI. This maintains a constant makeup flow rate regardless of seasonal temperature swings.
Quantifying PUE and WUE Reductions via High-Recovery Processing Skids
Data center operational costs and environmental performance metrics are directly tied to Power Usage Effectiveness (PUE) and Water Usage Effectiveness (WUE). Even minor mineral scale accumulation inside condenser bundles acts as an effective thermal insulator, forcing chiller compressors to draw excessive electrical power to meet cooling demands. Implementing a highly efficient water softening and high-rejection reverse osmosis configuration keeps approach temperatures tight, directly lowering facility PUE.
Trace Mineral Carryover ──> Micro-Scale Flashing ──> Restricted Flow Path
┌─────────────────────────────────┘
▼
Elevated Loop Pressure (PSI) ──> Mechanical Stress ──> Micro-Leakage Risk
Maximizing WUE requires pushing the cooling tower to higher cycles of concentration, which significantly reduces the volume of fresh makeup water required and lowers wastewater discharge. Utilizing customized filtration systems allows operators to safely operate near critical saturation limits without risking sudden scale deposition. This reduction in total blowdown volume lowers municipal utility costs while ensuring long-term compliance with local environmental discharge limits.
Deploying highly automated Skid-Mounted Systems featuring integrated clean-in-place (CIP) subsystems offers distinct financial and operational advantages:
- Lowering Infrastructure OPEX: Minimizes manual maintenance interventions, reduces chiller tube cleaning schedules, and extends the service life of secondary loop filter cartridges.
- Extending Capital Asset Lifespan: Protects high-value Coolant Distribution Units (CDUs), secondary cold plates, precision circulation pumps, and titanium plate heat exchangers from premature pitting and corrosion.
- Ensuring 99.999% Uptime: Mitigates the risk of localized thermal hot spots forming across the server rows, preventing automated GPU frequency throttling and unexpected hardware downtime.
N+1 Redundant Failover Configurations and BMS Integrated Automation
Operating a continuous 24/7/365 AI data center requires using water treatment equipment designed with built-in component redundancy. Standard industrial treatment equipment lacks the automated failover configurations needed to maintain continuous flow during routine filter cleanings or membrane replacements. High-density compute facilities require specialized, data-center-grade turn-key pure water systems that feature full N+1 or 2N mechanical and electrical redundancy.

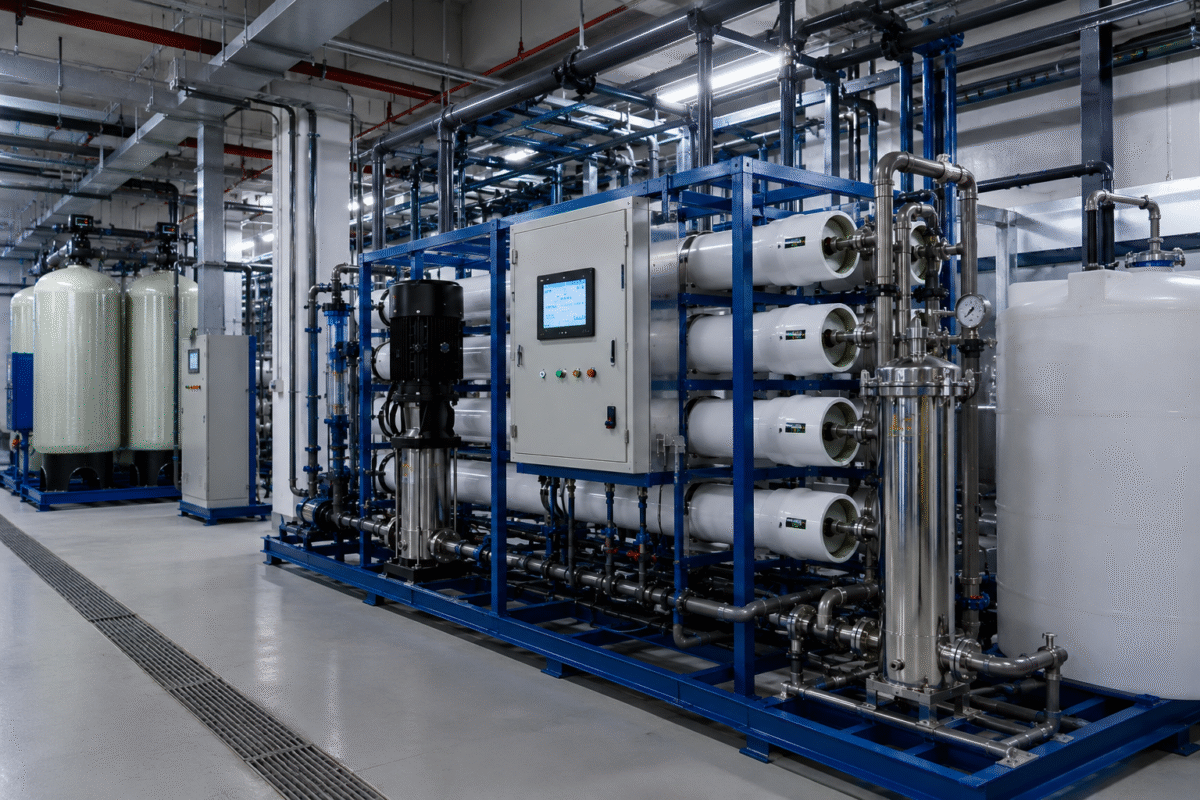

These advanced configurations use orbital-welded 316L stainless steel piping skids managed by high-reliability Programmable Logic Controllers (PLCs), such as the Siemens S7-1500 or Allen-Bradley ControlLogix. If a feed pump fails or a membrane array shows high differential pressure, the controller automatically opens secondary pneumatic bypass valves. This shifts the water flow to a backup treatment train instantly, keeping output flow and pressure completely stable.
[Active Treatment Train A] ───> (Sensors Detect High Delta-P or Pump Fault)
┌────────────────────────────────────┘
▼
[Automated PLC Command] ───> Opens Pneumatic Bypass Actuators
┌────────────────────────────────────┘
▼
[Backup Treatment Train B] ───> Online Instantly (No Flow or PSI Interruption)
In Direct-to-Chip cooling applications, the internal fluid channels milled directly into the copper cold plates feature internal clearances that are frequently under 100 microns wide. If the primary water treatment system allows trace amounts of dissolved silica or hardness ions to pass into the secondary loop, intense localized heat flux from the GPUs can trigger instant micro-scale flashing. This deposits a microscopic mineral scale layer that blocks the tiny channels.
This blockage quickly causes the GPU temperature to spike, triggering an automatic thermal shutdown. The resulting drop in flow also causes a sharp pressure spike within the cooling loop, increasing mechanical stress on internal fittings and creating a high risk of micro-leakages that can destroy expensive computing hardware. To prevent these failures, procurement teams should avoid standard commercial equipment and partner with companies specializing in highly redundant, data-center-grade systems.
| System Performance Matrix | Standard Commercial Skids | Data Center Grade High-Redundancy Systems |
| Redundancy Configuration | Simplex Pump / Single Controller Layout | Full N+1 or 2N Mechanical & Control Redundancy |
| Filtration Performance | 5.0 to 10.0 Micron Nominal Media | < 0.1 to 1.0 Micron Absolute Multi-Stage Arrays |
| BMS Communication | Basic Dry Contacts / Limited Outputs | Native Modbus TCP/IP & BACnet Full Telemetry |
| Structural Frame Matrix | Coated Carbon Steel / Standard PVC | 316L Stainless Steel Orbital Welded SKID Frames |
| Control Automation | Entry-Level Programmed Microprocessor | Siemens S7-1500 / Allen-Bradley ControlLogix PLCs |
| Equipment Lead Time | Standard 12 to 16 Week Build Cycles | Accelerated Modular Pre-Engineered Fast-Track |
FAQ
How do multi-stage filtration systems directly influence facility PUE performance?
By removing micro-particulates and scaling minerals before water enters the cooling loop, filtration systems eliminate the insulative fouling layers that form inside heat exchangers. This maintains optimal thermal transfer across the cooling loop, preventing chillers from drawing excess power and lowering PUE.
Why does ASHRAE TC 9.9 require secondary liquid cooling loops to maintain low electrical conductivity?
ASHRAE TC 9.9 requires secondary cooling fluids to maintain electrical conductivity below 0.1 uS/cm to eliminate the risk of galvanic corrosion between different metals in the loop. It also ensures that if a micro-leak occurs near the electronics, the fluid will not conduct electricity and cause short circuits on the server boards.
What pre-treatment changes are required when a facility transitions from municipal water to reclaimed greywater?
Reclaimed greywater contains high background organic matter, ammonia, and orthophosphates that cause rapid membrane bio-fouling. Pre-treatment systems must add granular activated carbon beds, specialized ultrafiltration pre-layers, and automated biocide dosing networks to protect downstream reverse osmosis membranes.
How does a membrane’s Temperature Correction Factor affect winter data center operations?
Cold feed water increases water viscosity, which reduces the throughput of reverse osmosis membranes. If the water system is designed without factoring in this winter drop, total pure water production can fall by up to 40%, causing low basin levels and pressure instabilities across the cooling loop.
What are the advantages of integrating water treatment controllers with a central BMS via BACnet IP?
Native BACnet IP integration allows the central Building Management System to track real-time telemetry, including flow rates, operating pressures, and water quality metrics. This enables operators to detect scaling trends, membrane fouling, or equipment faults early, allowing for maintenance before it impacts server cooling.
Sustaining continuous operational uptime across high-density AI compute clusters requires highly specialized water treatment loops engineered for maximum reliability and rapid deployment. Partnering with a dedicated engineering firm eliminates critical design oversights, maximizes total thermal rejection efficiency, and protects high-value infrastructure assets.
- Get an Infrastructure Engineering Quote: Submit your comprehensive raw water profile and design GPM/PSI requirements to receive a detailed system design and pricing proposal.
- Technical Data Sheets & PUE Validation Profiles: Download complete CAD blocks, detailed P&ID schematics, and structural footprint layouts for our modular data center process skids.
- B2B Wholesale / Factory-Direct Pricing: Contact our industrial procurement division to discuss fleet-wide equipment standardization and volume pricing utilizing our advanced industrial water filtration for data centers architectures.
