High-Density Coolant Engineering: Scalable Hydronic Architecture for Next-Generation AI Clusters
The rapid scaling of generative AI computing clusters has forced a permanent shift in data center thermal management. Legacy air-cooled architectures cannot dissipate heat when rack densities exceed 40kW to 120kW+ per rack, making direct-to-chip (D2C) cold plates and immersion systems mandatory. Because these systems use narrow fluid channels right next to high-value silicon components, water quality shifts can quickly lead to mineral scale, corrosion, or bio-films.
Modern AI data centers deploying high-density hardware architectures face unprecedented thermal challenges. Traditional cooling mediums, such as a 25% propylene glycol blend, are increasingly falling out of favor because glycol inherently reduces a fluid’s latent heat transfer capability, forcing pumps to work harder and driving up Power Usage Effectiveness (PUE). In contrast, a closed-loop ultrapure water system for liquid cooling provides optimal thermodynamic conductivity, directly minimizing operational energy draw.
However, utilizing water in direct-to-chip (DTC) microchannels and coolant distribution units (CDUs) introduces strict purity demands. Regular water contains dissolved minerals and gases that trigger rapid mineral scaling, galvanic corrosion, or bio-fouling across tight-tolerance copper cold plates. Once a microfilm layer accumulates, thermal resistance spikes, leading to localized GPU throttling or catastrophic chip failure. Maintaining pristine fluid chemistry is no longer just a sustainability goal—it is a mission-critical infrastructure requirement.
Fast Check Product: https://yourwatergood.com/product/industrial-reverse-osmosis-system/
To support hyperscale deployments and edge computing facilities throughout the United States and Europe, YourWaterGood manufactures robust, scalable commercial and industrial-grade water purification platforms.
Moving far beyond low-capacity, high-maintenance desktop filtration, our industrial process train combines primary multi-stage filtration with high-recovery membrane separation to deliver continuous, high-volume fluid stabilization:
- Advanced Particle Isolation Nodes: Deploying heavy-duty, high-density PP cotton sediment modules alongside premium extruded carbon blocks to remove suspended silt, colloids, and chlorine prior to membrane processing.
- Double-Pass Industrial RO Units: Stripping out up to 99% of bulk Total Dissolved Solids (TDS), silica, and hard mineral ions to establish a low-conductivity baseline feed.
- Deionization and Polishing Loops: Integrating modular continuous electrodeionization (EDI) and mixed-bed polishing steps to lift fluid resistivity toward absolute purity, protecting delicate direct-to-chip cooling loops from chemical degradation.
Maintaining uninterrupted operation across these mission-critical compute clusters requires deploying a dedicated ultrapure water system for liquid cooling that locks in tight physical and chemical parameters:
- Sub-Micro West Conductivity Profiles: Maintaining continuous electrical conductivity below 0.1 uS/cm to eliminate macro-galvanic tracking and structural corrosion risks.
- Absolute Micro-Particulate Interception: Implementing continuous multi-stage filtration down to 0.05 microns to prevent the accumulation of debris in high-density cold plates.
- Continuous Electrodeionization (EDI) Polish: Utilizing chemical-free electrical regeneration to steadily strip out weak ions, including silica and boron, without flow interruptions.
- Integrated BMS Telemetry Interoperability: Providing native communication via Modbus TCP/IP or BACnet protocols to deliver real-time data on resistivity, flow rates, and trans-membrane differential pressures.
Controlling Electrical Conductivity and Ionic Leaching in Closed-Loop Circuits
Secondary fluid loops running directly through server chassis require water with near-total ionic purity to prevent thermal failures. When pure water absorbs heat from high-frequency GPU surfaces, its natural solvent characteristics increase, causing it to gradually leach metals from copper cold plates and stainless steel fittings. This ionic leaching raises the electrical conductivity of the loop, increasing the risk of short circuits if a minor component leak occurs.
To maintain structural control over ionic concentration levels, facilities deploy continuous side-stream demineralization arrays alongside primary filtration systems. These loops route a dedicated percentage of the circulating fluid through specialized, high-capacity mixed-bed resin cylinders or EDI modules to continuously capture dissolved metallic ions. Keeping loop conductivity consistently below 0.1 uS/cm helps data centers prevent galvanic coupling and protect multi-million dollar computing hardware from localized electrical arcing.
Furthermore, biological fouling presents a critical threat within these warm closed-loop secondary networks, where fluid temperatures hover between 85°F and 115°F. These temperatures create an ideal environment for rapid bacterial growth, which can form a dense biological slime layer that acts as an aggressive thermal insulator. To prevent this without increasing fluid conductivity, engineers use precise UV sterilization arrays operating at a 254 nm wavelength to destroy bacterial DNA without adding conductive chemical biocides to the stream.
Secondary Cold Plate Fluid Mechanics vs. Primary Evaporative Systems
High-density compute facilities divide water management into two completely separate functional topologies: the ultra-pure secondary loop and the high-volume primary loop. The secondary loop focuses on high purity and low conductivity, moving fluid directly across the micro-machined internal surfaces of the server cold plates. This configuration handles low volumetric flow rates at high internal pressures, requiring specialized plastic piping and 316L stainless steel connections.
In contrast, the primary cooling loop handles the main heat rejection requirements, moving thousands of gallons per minute (GPM) through outdoor cooling towers or evaporative fluid coolers. Water quality management in this open circuit focuses on controlling bulk mineral concentration and preventing environmental contamination. Operators must continuously monitor evaporation rates and local discharge rules while balancing chemical dosing against ambient dust and biological entry.
[Primary Loop: High Volume Evaporative Cooling]
Utility Supply ──> Multi-Media Filtration ──> Automated Scale Inhabitation ──> High-GPM Cooling Towers
┌────────────────────────────────────────┘
▼
[Heat Exchanger Isolation Plate]
└────────────────────────────────────────┐
▼
[Secondary Loop: Direct-to-Chip Ultra-Pure Flow]
Permeate Inflow ──> Skid Softeners ──> Two-Stage RO ──> EDI Pure Water Stack ──> High-Density GPU Cold Plates
Managing water across these two distinct loops requires separate pre-treatment strategies at the utility intake line. If the facility uses hard municipal water, the primary system must prioritize high-efficiency water softening and reverse osmosis to remove scale-forming calcium and silica. If the facility utilizes recycled or reclaimed greywater, the pre-treatment skids must use advanced multi-media filters and deep-bed carbon systems to handle unpredictable organic loads and high background ammonia levels.

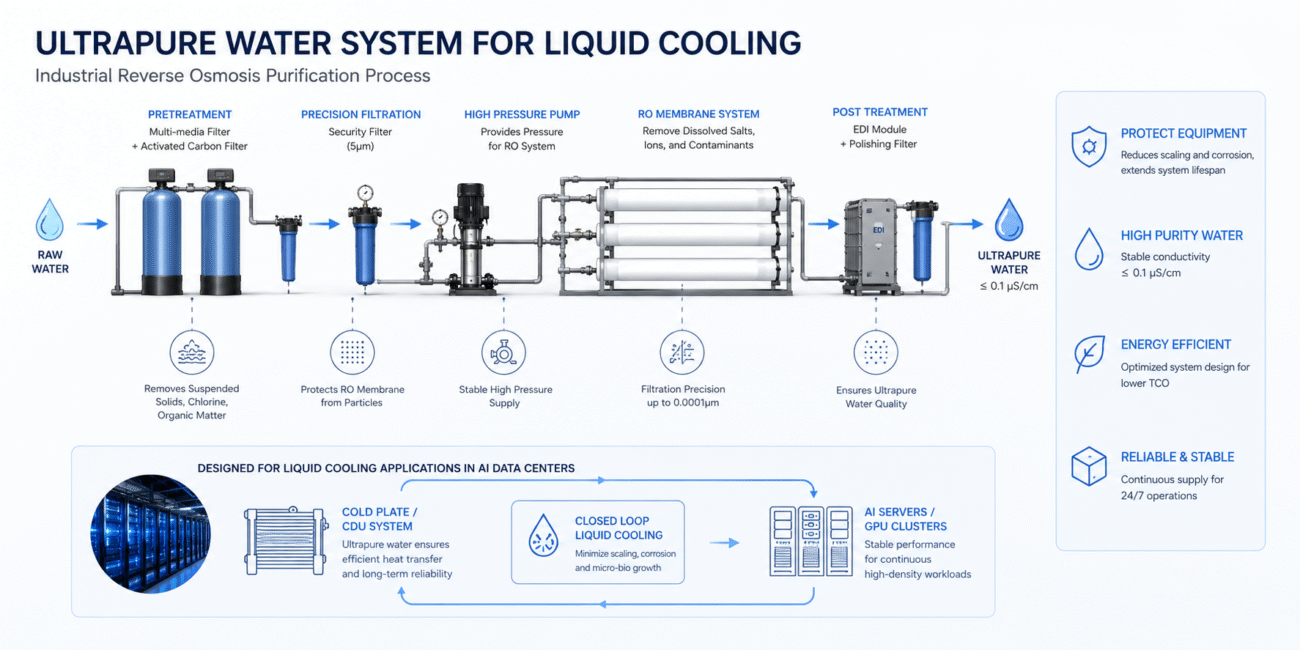

Volumetric Sizing GPM and Pressure Dynamics Across EDI Membranes
Sizing a water treatment system for a modern data center requires balancing required flow rates against stable membrane operating pressures. Pre-treatment skids must supply enough high-purity water to match the facility’s peak evaporation rates and closed-loop filling requirements. If incoming municipal water pressure fluctuates, automated booster pumps must adjust instantly to maintain stable operating pressures between 60 PSI and 110 PSI across the primary reverse osmosis membranes.
Raw Water Utility Inlet
│
▼
Automated Variable-Frequency Drive (VFD) Booster Array (Maintains Constant System PSI)
│
▼
Industrial Two-Stage RO Filtration Skids (High Permeate Volumetric Output)
│
▼
Continuous Electrodeionization (EDI) Stack Polishing (Sub-0.1 uS/cm Circuit Delivery)
A common oversight during the system sizing phase is ignoring the Temperature Correction Factor (TCF) of filtration membranes. When seasonal source water temperatures drop during winter, water viscosity increases, which restricts flow through reverse osmosis membranes. If a system is designed based only on summer water temperatures, its actual permeate production can drop by up to 30% to 40% during cold weather.
This seasonal flow reduction can starve downstream storage tanks and disrupt cooling tower basin levels, forcing operators to run fewer cycles of concentration and increase blowdown frequency. To prevent these cold-weather capacity losses, systems must utilize larger membrane surface areas and variable-frequency high-pressure pumps. These pumps can ramp up to 220 PSI to maintain stable volumetric flow rates throughout winter weather cycles.
Minimizing Infrastructure OPEX Through PUE and WUE Optimization
Data center financial performance is evaluated using Power Usage Effectiveness (PUE) and Water Usage Effectiveness (WUE). Even minor mineral scale accumulation inside liquid-to-liquid heat exchangers acts as an insulative layer that reduces heat transfer efficiency. This scale formation forces secondary circulation pumps and outdoor chillers to run harder, driving up facility power consumption and PUE.
Dissolved Mineral Breakthrough ──> Micro-Scale Crystallization ──> Insulated Thermal Transfer Interface
┌──────────────────────────────────────┘
▼
Increased Compressor Power Consumption ──> PUE Metric Degradation ──> Elevated Facility Electricity Cost
To optimize WUE, facilities must push their cooling towers to run at higher cycles of concentration, which reduces freshwater consumption and limits total wastewater volume. Operating near these chemistry limits requires precise water softeners and industrial RO equipment to remove scaling ions before they reach the tower basins. This helps the facility meet local environmental discharge rules while reducing overall municipal water costs.
Using automated, modular Skid-Mounted Systems provides concrete financial and operational advantages:
- Lowering Infrastructure OPEX: Reduces manual maintenance requirements, cuts down on acid-cleaning cycles for heat exchangers, and extends the life of internal secondary loop filter cartridges.
- Extending Capital Asset Lifespan: Protects expensive Coolant Distribution Units (CDUs), milled copper cold plates, and high-pressure pumps from premature corrosion and micro-pitting.
- Ensuring 99.999% Uptime: Eliminates localized server hot spots caused by scale restrictions, preventing automated GPU frequency throttling and unexpected cluster downtime.
N+1 Redundant Topology and Automated PLC Bypass Sequence Logic
High-density AI computing operations require water systems with much higher reliability than standard industrial filtration skids. Mission-critical data centers use specialized water treatment arrays engineered with independent mechanical and electrical isolation. This N+1 or 2N architecture ensures that routine maintenance, membrane cleaning, or unexpected component failures never cause a drop in water supply to the cooling loops.
These systems are built on welded 316L stainless steel frames and managed by industrial Programmable Logic Controllers (PLCs), such as the Allen-Bradley ControlLogix or Siemens S7-1500. If an inline sensor detects high differential pressure or a pump failure, the PLC automatically opens pneumatic bypass valves. This switches operation to a secondary filtration train instantly, maintaining stable system pressures and flow rates without manual intervention.
[Primary Treatment Train Online] ───> (PLC Multi-Sensor Array Detects Component Fault)
┌──────────────────────────┘
▼
[Automated PLC Override Execution] ───> Triggers Pneumatic Actuator Array
┌──────────────────────────┘
▼
[Backup Treatment Train Online] ───> Sustains System GPM and PSI Baselines Seamlessly
Within direct-to-chip cooling loops, the tiny micro-channels carved into copper cold plates often have internal clearances under 100 microns wide. If a low-quality water treatment system allows trace amounts of hardness or silica to pass into the secondary loop, intense heat flux from the GPUs can cause instant micro-scale crystallization. This scale buildup restricts fluid flow through the cold plate channels.
This flow restriction leads to immediate temperature spikes that can trigger automatic server safety shutdowns. The reduction in channel clearance also creates a sharp pressure spike within the cooling loop, increasing mechanical stress on internal connections and raising the risk of leaks that can damage electronics. To avoid these risks, facilities should avoid standard commercial water skids and specify high-redundancy water treatment systems built for data center operations.
| Infrastructure Engineering Matrix | Standard Pre-Engineered Skids | Data Center Grade High-Redundancy Systems |
| Redundancy Configuration | Simplex Pump / Single Controller Layout | Full N+1 or 2N Mechanical & Control Redundancy |
| Filtration Performance | 5.0 to 10.0 Micron Nominal Media | < 0.1 to 1.0 Micron Absolute Multi-Stage Arrays |
| BMS Communication | Basic Dry Contacts / Limited Outputs | Native Modbus TCP/IP & BACnet Full Telemetry |
| Structural Frame Matrix | Coated Carbon Steel / Standard PVC | 316L Stainless Steel Orbital Welded SKID Frames |
| Control Automation | Entry-Level Programmed Microprocessor | Siemens S7-1500 / Allen-Bradley ControlLogix PLCs |
| Equipment Lead Time | Standard 12 to 16 Week Build Cycles | Accelerated Modular Pre-Engineered Fast-Track |
Integrating an advanced ultrapure water system for liquid cooling skid into the central utility plant gives facility managers reliable control over water purity metrics. Combining this filtration with EDI units and automated chemical dosing creates a robust barrier against dissolved solids. Standardizing on factory-assembled, pre-tested skids helps operators accelerate construction timelines, simplify on-site integration, and maintain high system uptime through a reliable ultrapure water system for liquid cooling.
FAQ
How does high loop resistivity prevent short circuits during a liquid cooling leak?
High-purity water with a resistivity of 18 Megohm-cm contains almost zero dissolved ions, making it non-conductive. If a minor leak occurs inside the server chassis, this fluid will not conduct electricity across active circuit boards, preventing short circuits and component damage while giving operators time to isolate the leak.
Why do micro-channels under 100 microns require absolute multi-stage sub-micron filtration?
The small fluid pathways inside high-density cold plates can easily be blocked by fine suspended solids, ambient dust, or pipe debris. Using absolute-rated filtration down to 0.05 microns removes these tiny particulates before they reach the server racks, preventing localized flow restrictions and thermal hot spots.
What causes galvanic corrosion inside mixed-metal secondary cooling loops?
Galvanic corrosion occurs when two different metals, such as copper and stainless steel, are connected through a conductive fluid. If water conductivity rises due to mineral bypass or metal leaching, it creates an electrical path that accelerates the corrosion of the weaker metal, leading to component failure and leaks.
How do seasonal water temperature drops impact data center pre-treatment capacity?
Cold water increases fluid viscosity, which reduces the output of reverse osmosis membranes. If the pre-treatment system is designed without factoring in this winter drop, total water production can fall by up to 40%, potentially starving cooling tower basins or secondary makeup loops.
Why is continuous electrodeionization preferred over chemical-regenerated mixed beds?
EDI systems use an electrical current to continuously regenerate their ion-exchange resins without requiring acid or caustic chemicals. This chemical-free operation eliminates the downtime needed for resin regeneration, reduces on-site chemical storage risks, and provides a highly stable water purity profile.
How does the cooling tower’s cycle of concentration affect wastewater discharge volume?
Running at higher cycles of concentration means the cooling tower reuses water for more evaporation cycles before discharging it as blowdown. This significantly reduces the amount of fresh makeup water required and lowers total wastewater volume, helping the facility lower utility costs and meet local environmental rules.
Maintaining continuous operational uptime across high-density AI compute clusters requires highly specialized water treatment loops engineered for maximum reliability and rapid deployment. Partnering with a dedicated engineering firm eliminates critical design oversights, maximizes total thermal rejection efficiency, and protects high-value infrastructure assets.
